all measurements in inches
Type | Item # | Description | Qty/UOM |
---|---|---|---|

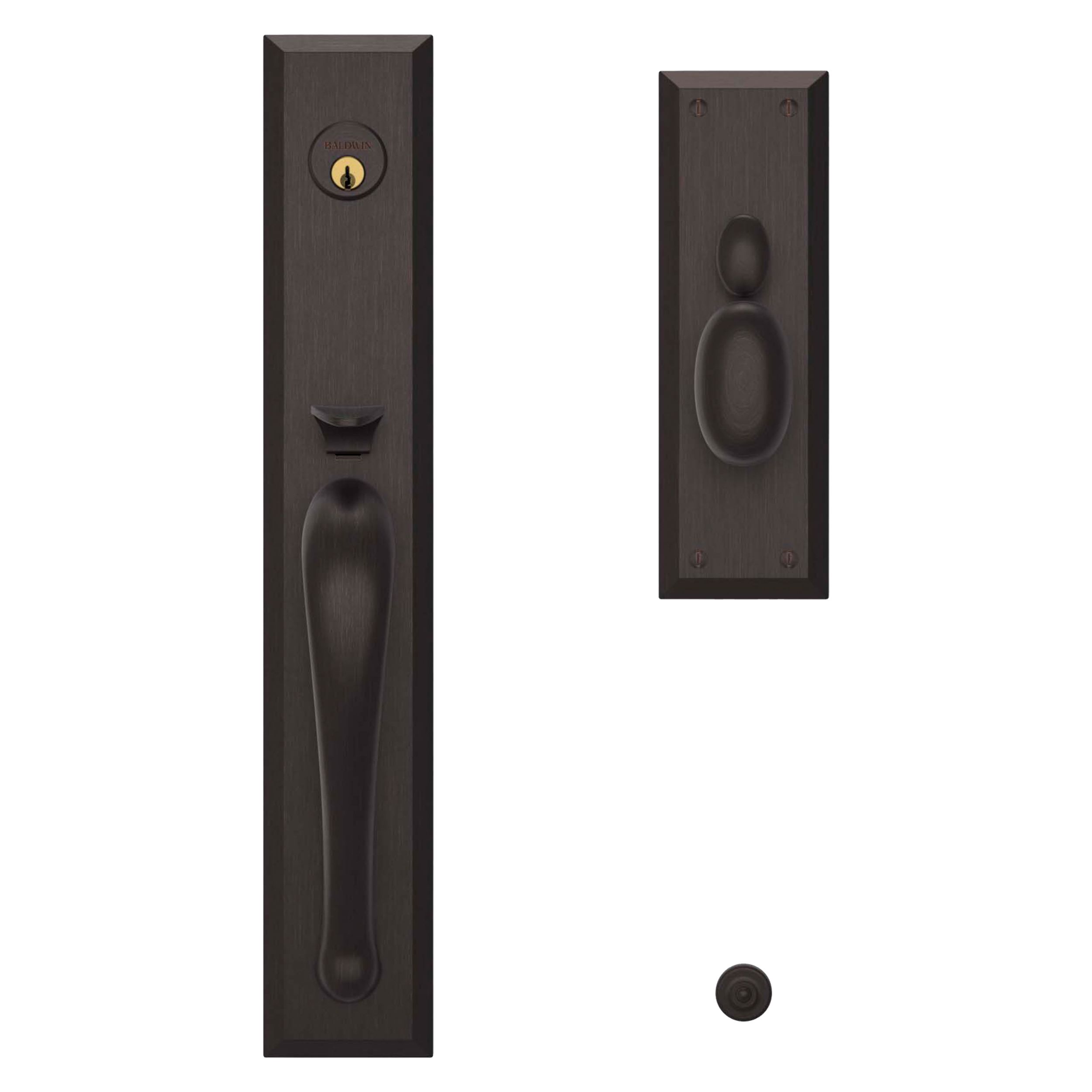

Set | M504.xxx.ENTR | Entrance Trim – Knob | Set |

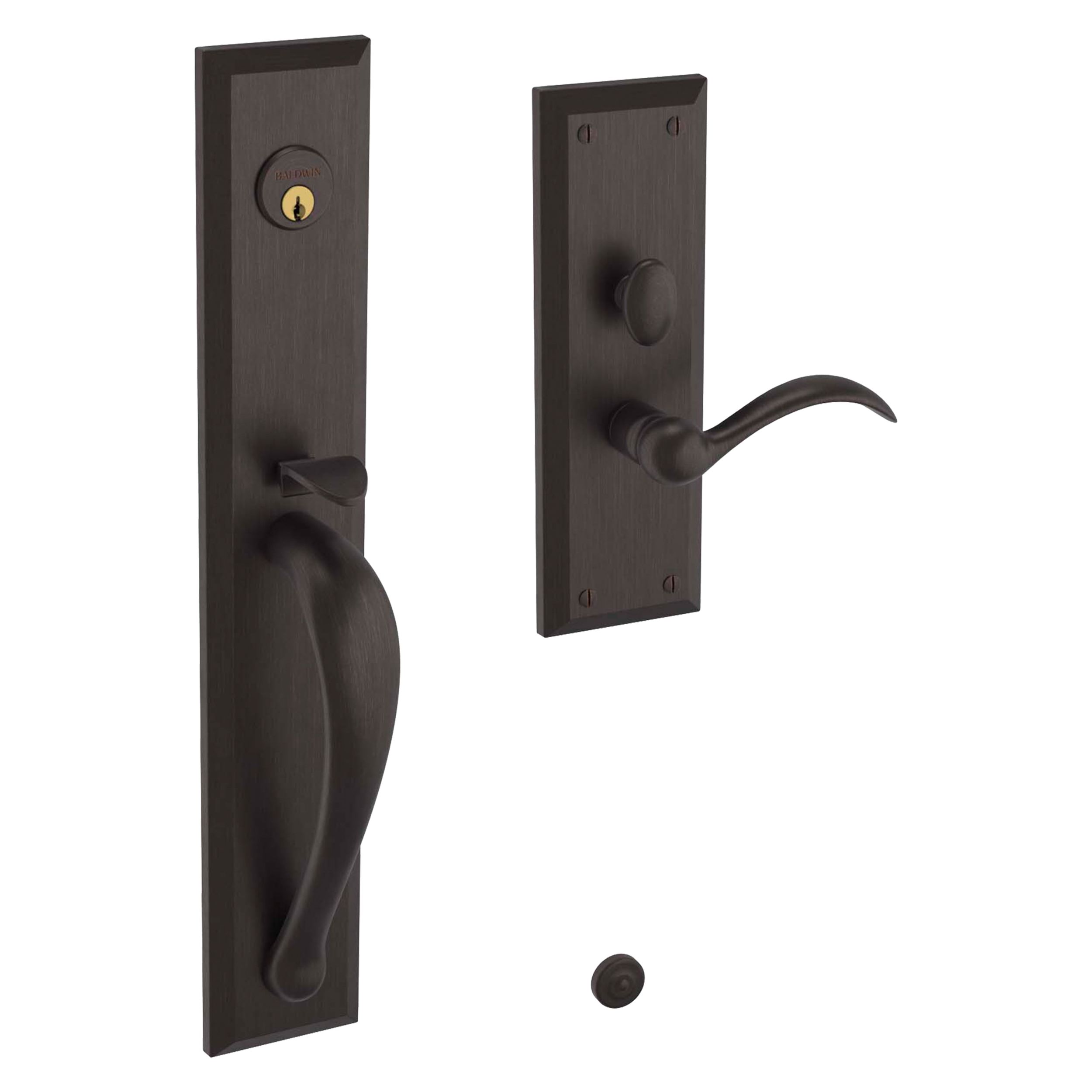

Set | M504.xxx.RENT (LENT) | Entrance Trim – Lever | Set |
Set | M504.xxx.FD | Full Dummy – Knob | Set |
Set | M504.xxx.RFD (LFD) | Full Dummy – Lever | Set |

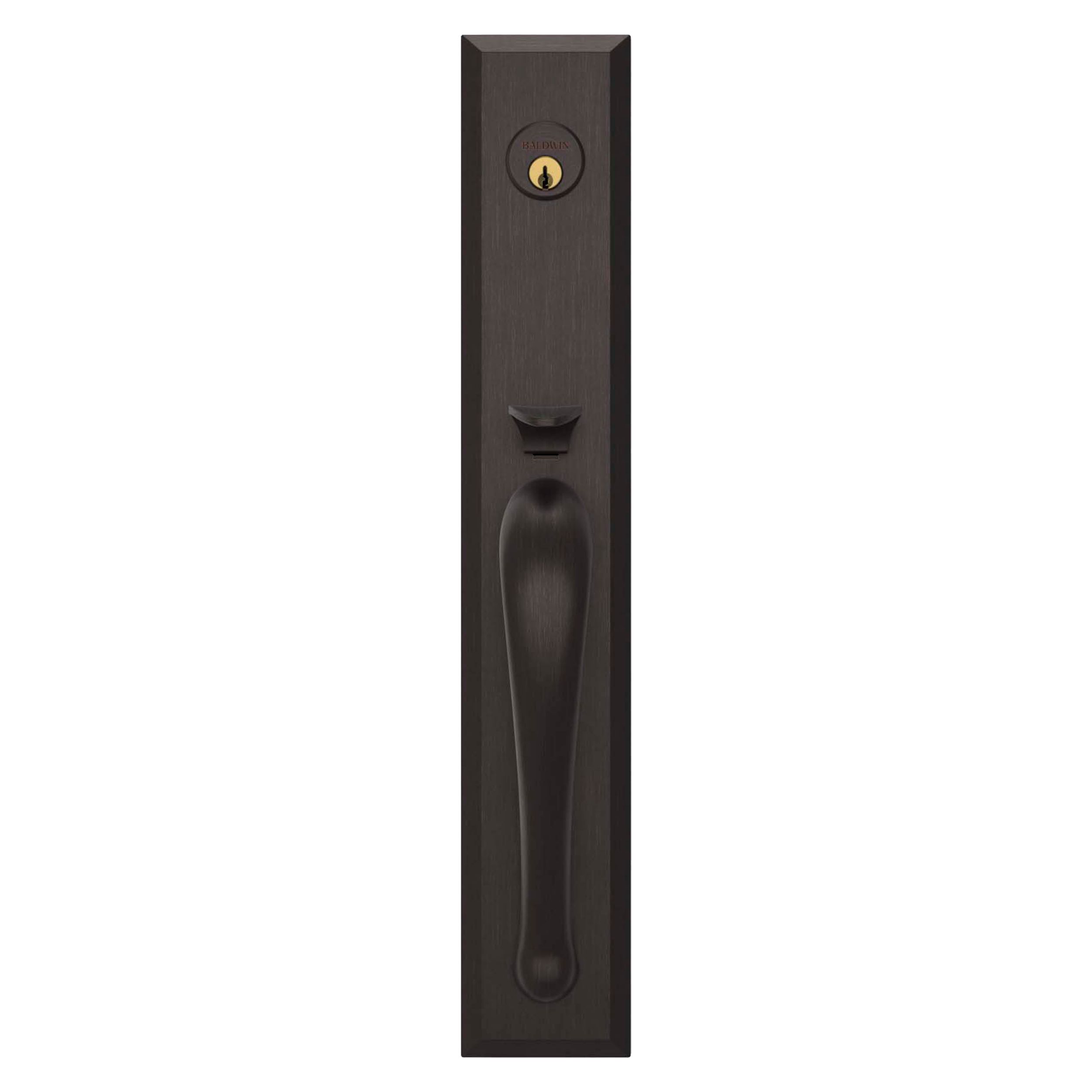

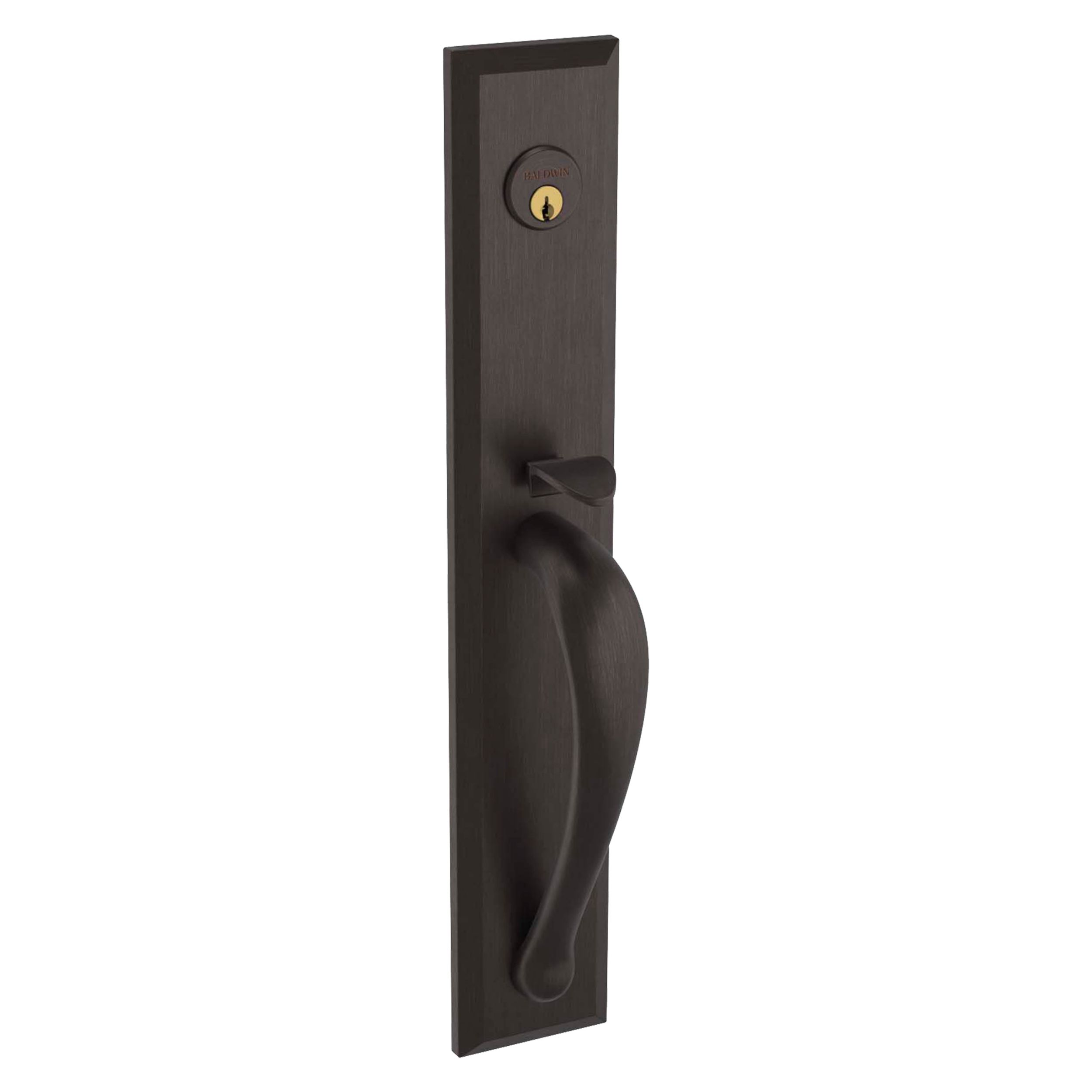

Ext | M504.xxx | Active Exterior Trim | Each |
Ext | M504.xxx.DM | Dummy Exterior Trim | Each |
Interior | M502.xxx.KC | Interior Escutcheon – Cut for Cylinder (KC), Double Cylinder | Each |
Interior | M502.xxx.KE** | Cut for Emergency Release (KE) | Each |
Interior | M502.xxx.KN | Cut for Knob (KN), Passage/Dummy | Each |

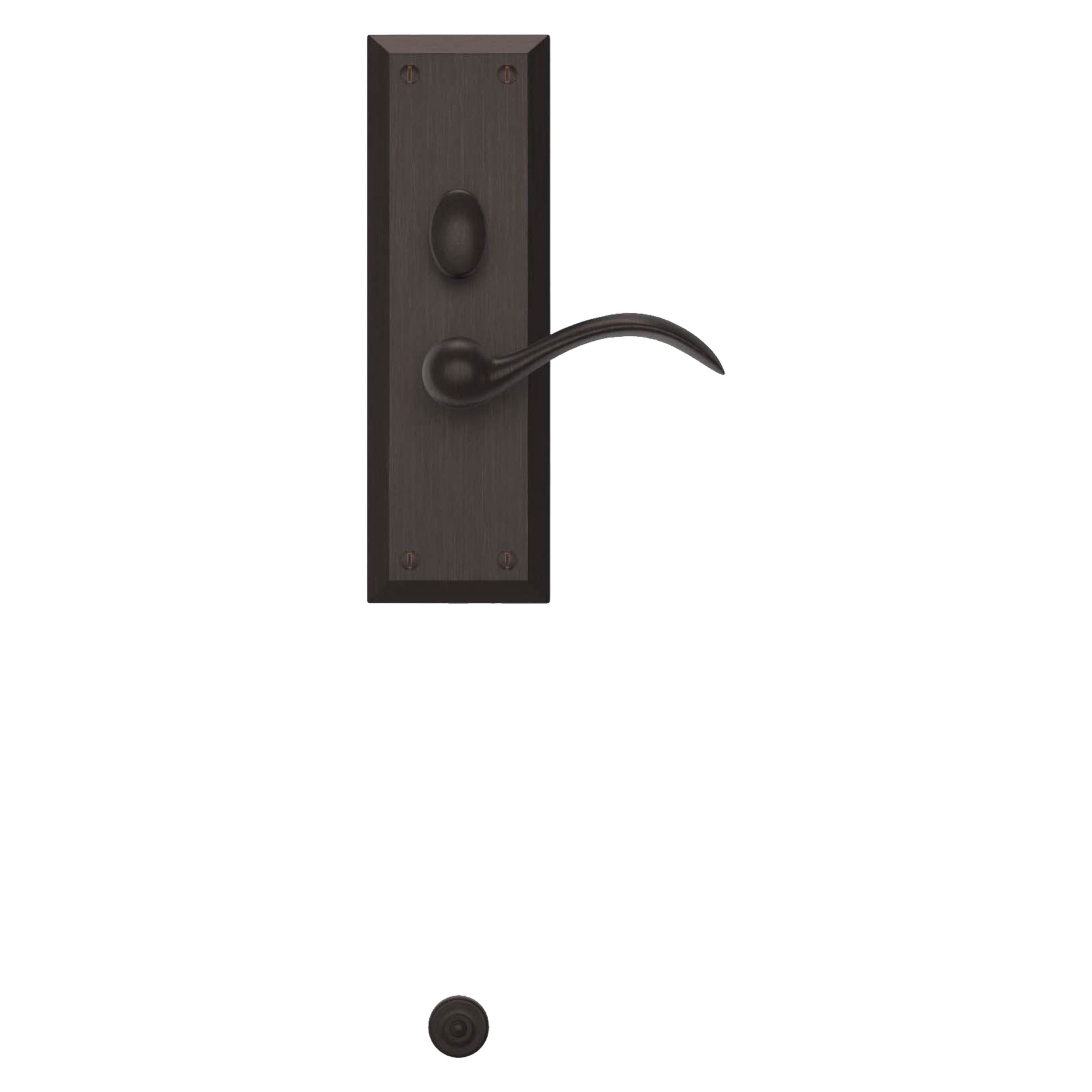

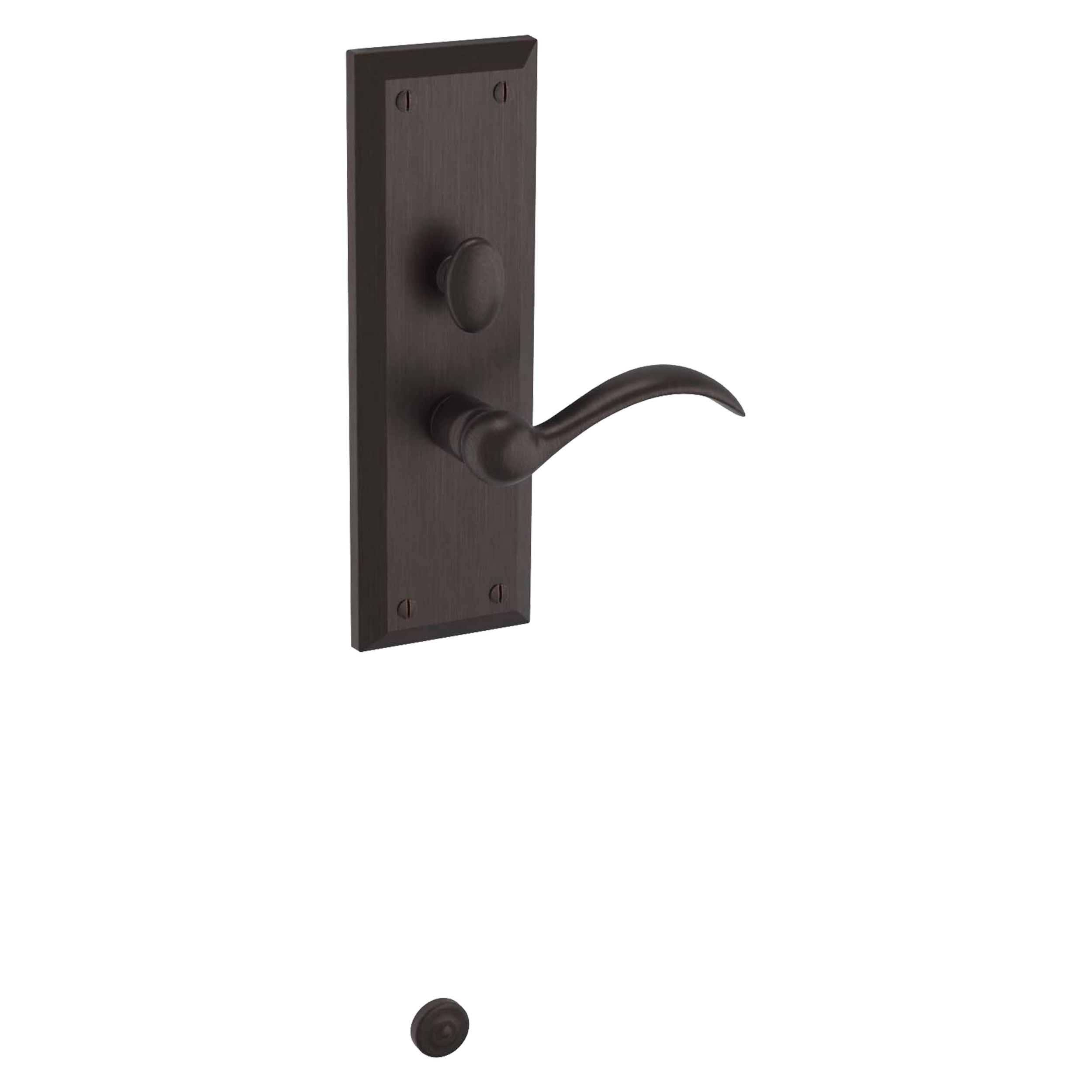

Interior | M502.xxx.KT | Interior Escutcheon w/ Turn Knob (KT) | Each |
